System Cabinet/ 2 Layers

SYSTEM SHELF is inspired by the integral parts of beam and column in architecture. It is a product of the designer’s standing pursuit of integrating products into space naturally yet rhythmically.

Information

Product parameters: 1-NAME

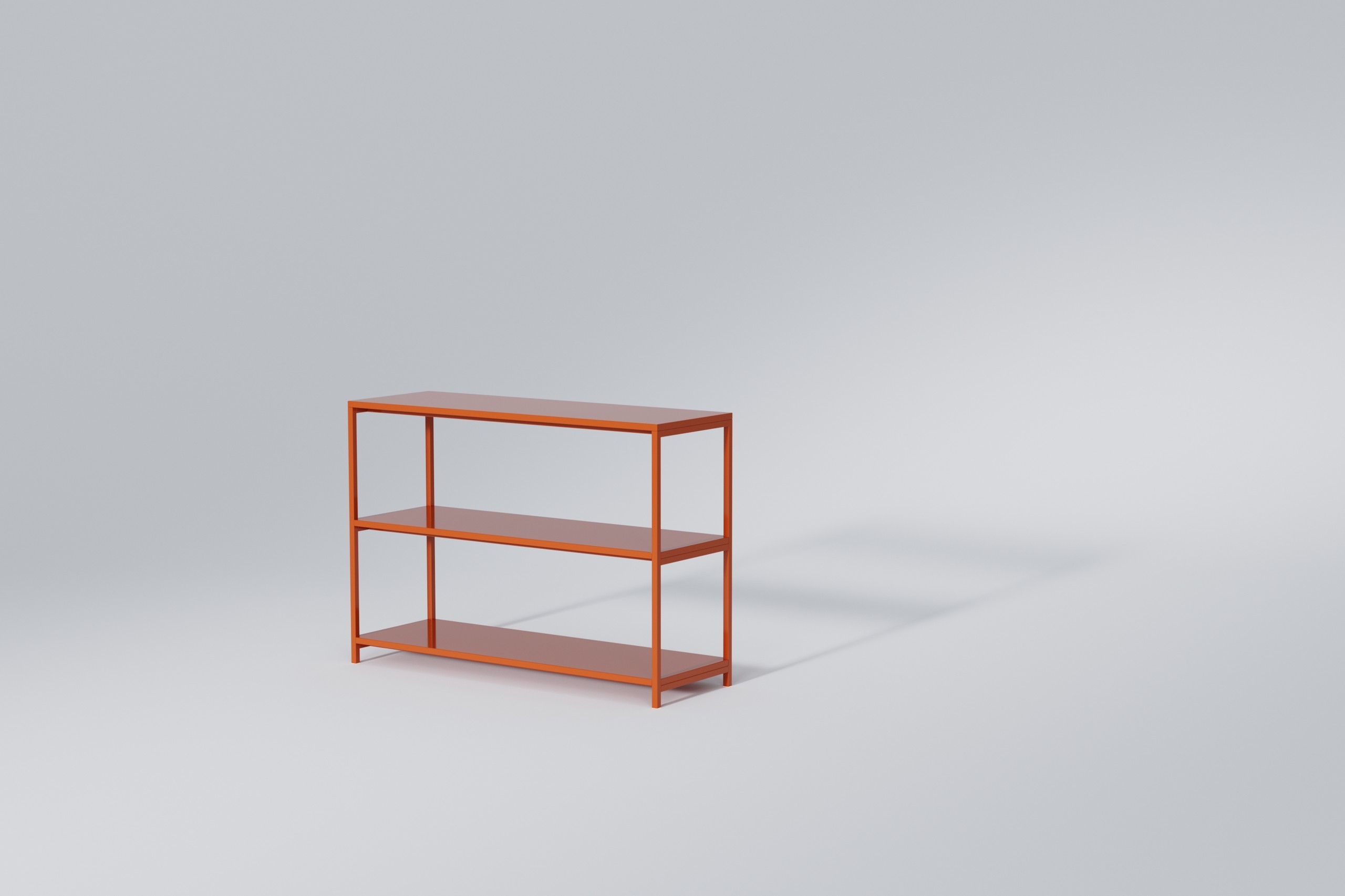

System Cabinet/ 2 Layers; 1-TYPE
SYS-SH-02-A; 1-MATERIAL
Frame: 2.0mmT steel pipe; board: MDF; 1-SIZE

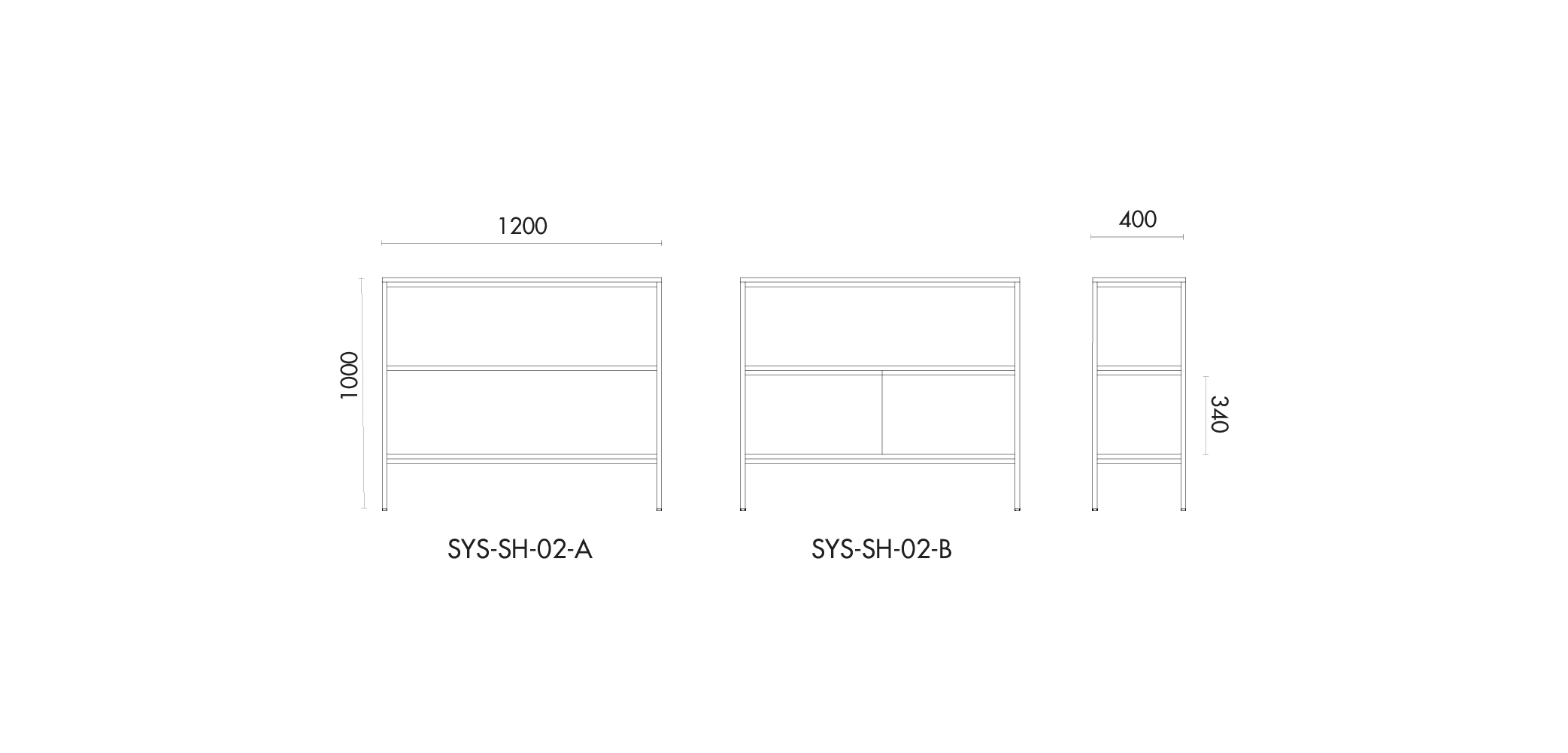

W1200 D400 H1000; 1-PROCCESS
Frame: white/orange electrostatic powder coating; board: white/orange paint;; 1-PACKAGE SIZE; 1-PACKAGE VOLUME; 1-NET WEIGHT; 1-GROSS WEIGHT; 1-NUMBER OF PACKAGES; 1-PACKING METHOD; 2-NAME

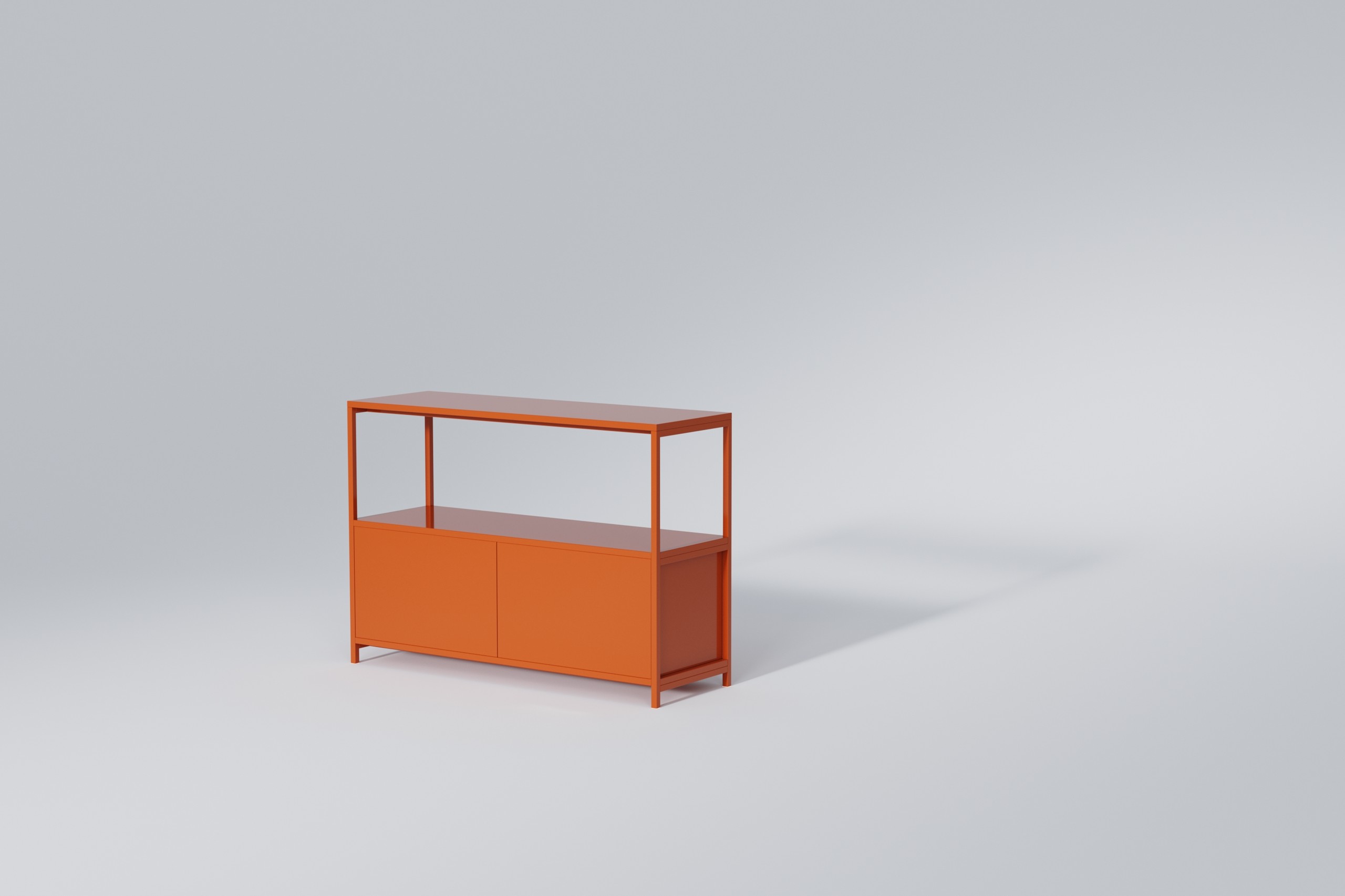

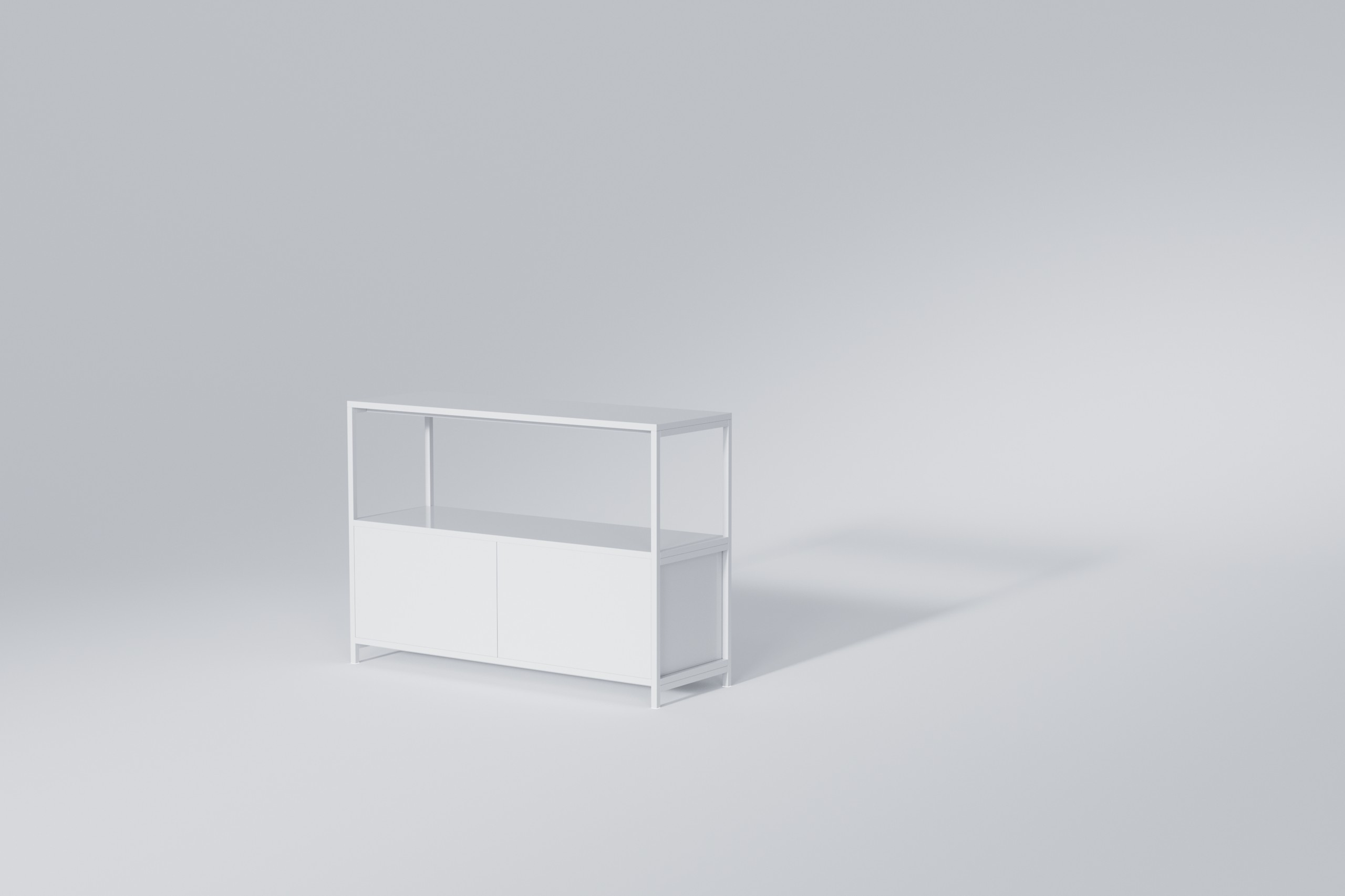

System Cabinet/ 2 Layers with door; 2-TYPE
SYS-SH-02-B; 2-MATERIAL
Frame: 2.0mmT steel pipe; board: MDF; 2-SIZE
W1200 D400 H1000; 2-PROCCESS
Frame: white/orange electrostatic powder coating; board: white/orange paint;; 2-PACKAGE SIZE; 2-PACKAGE VOLUME; 2-NET WEIGHT; 2-GROSS WEIGHT; 2-NUMBER OF PACKAGES; 2-PACKING METHOD

System Cabinet

White
橙色Orange


3D Model

TitleFile: SYS-SH-02-A.3ds3ds 87.08K
Download; SYS-SH-02-A.dwgdwg 88.81K
Download; SYS-SH-02-B.mtlmtl 9.0B
Download; SYS-SH-02-A.mtlmtl 9.0B
Download; SYS-SH-02-B.dwgdwg 87.5K
Download; SYS-SH-02-B.objobj 390.66K
Download; SYS-SH-02-A.objobj 383.57K
Download; SYS-SH-02-B.3ds3ds 90.14K
Download

SU Model

TitleFile: SYS-SH-02-B.skpskp 541.09K
Download; SYS-SH-02-A.skpskp 535.57K
Download

CAD Model

TitleFile: SYS-SH-02-B.dwgdwg 60.53K
Download; SYS-SH-02-A.dwgdwg 81.38K
Download

Revit Model

TitleFile: SYS-SH-02-B.satsat 518.17K
Download; SYS-SH-02-A.rfarfa 436.0K
Download; SYS-SH-02-B.rfarfa 440.0K
Download; SYS-SH-02-A.satsat 502.25K
Download
