Product parameters

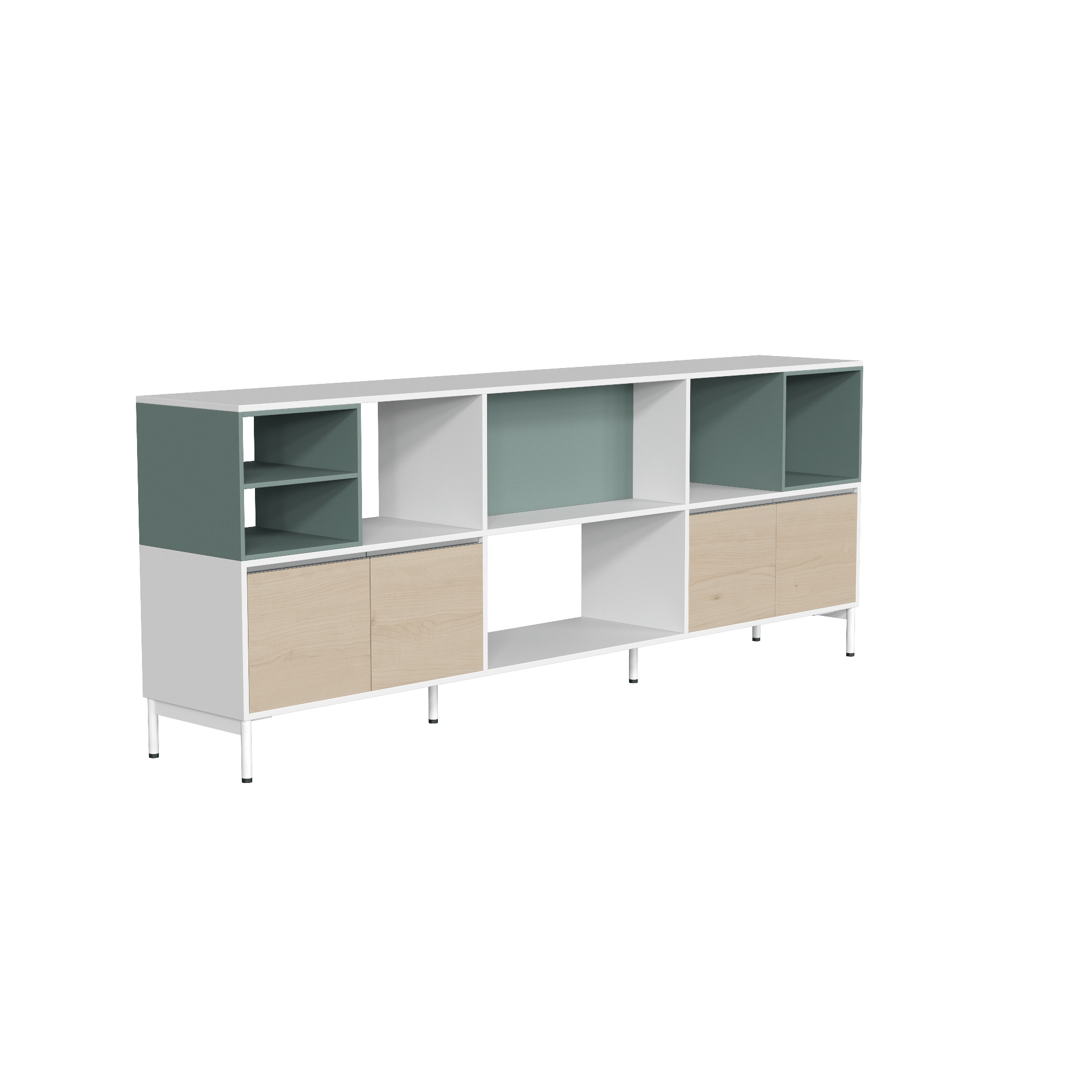

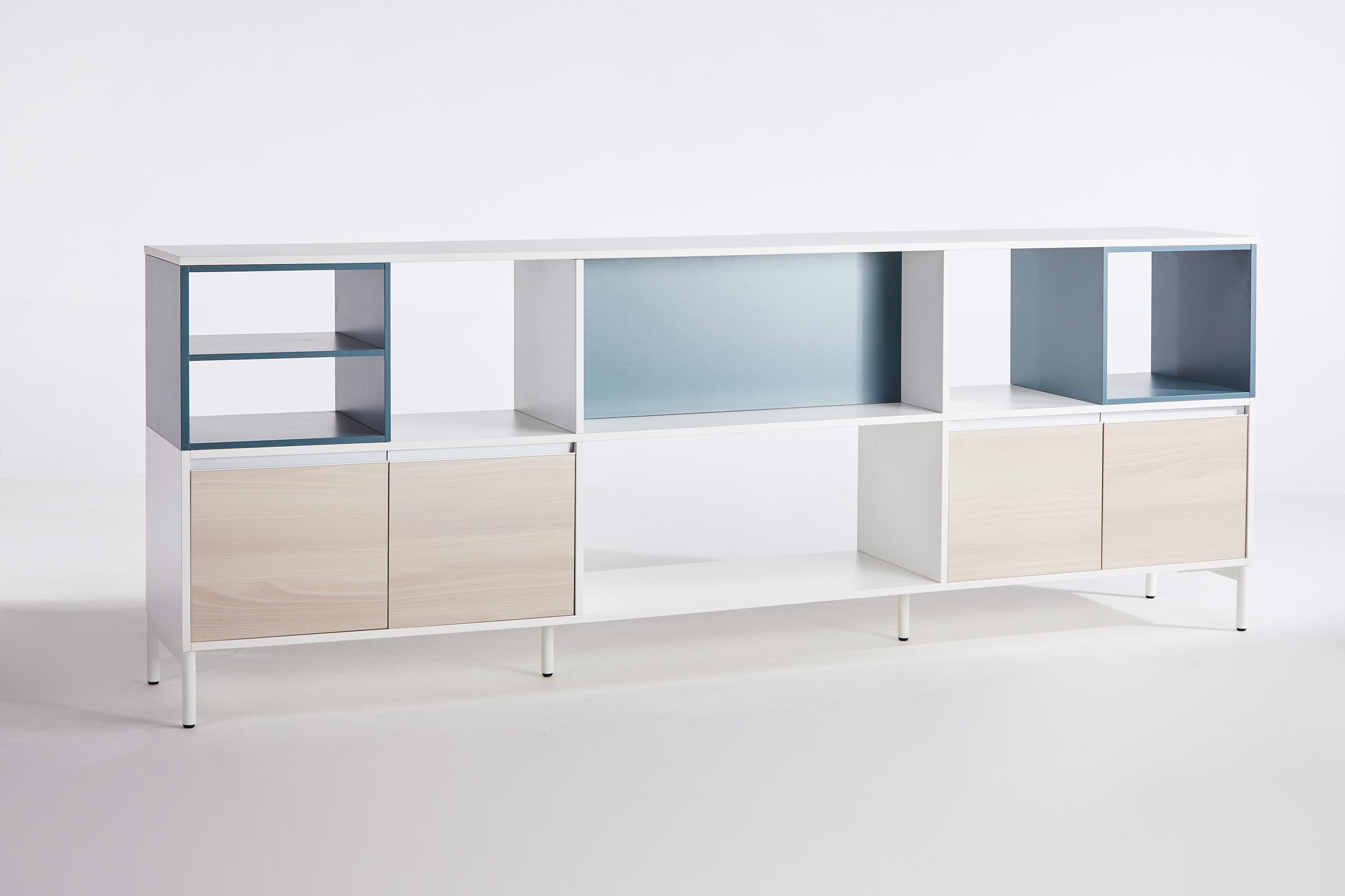

- 1-NAME

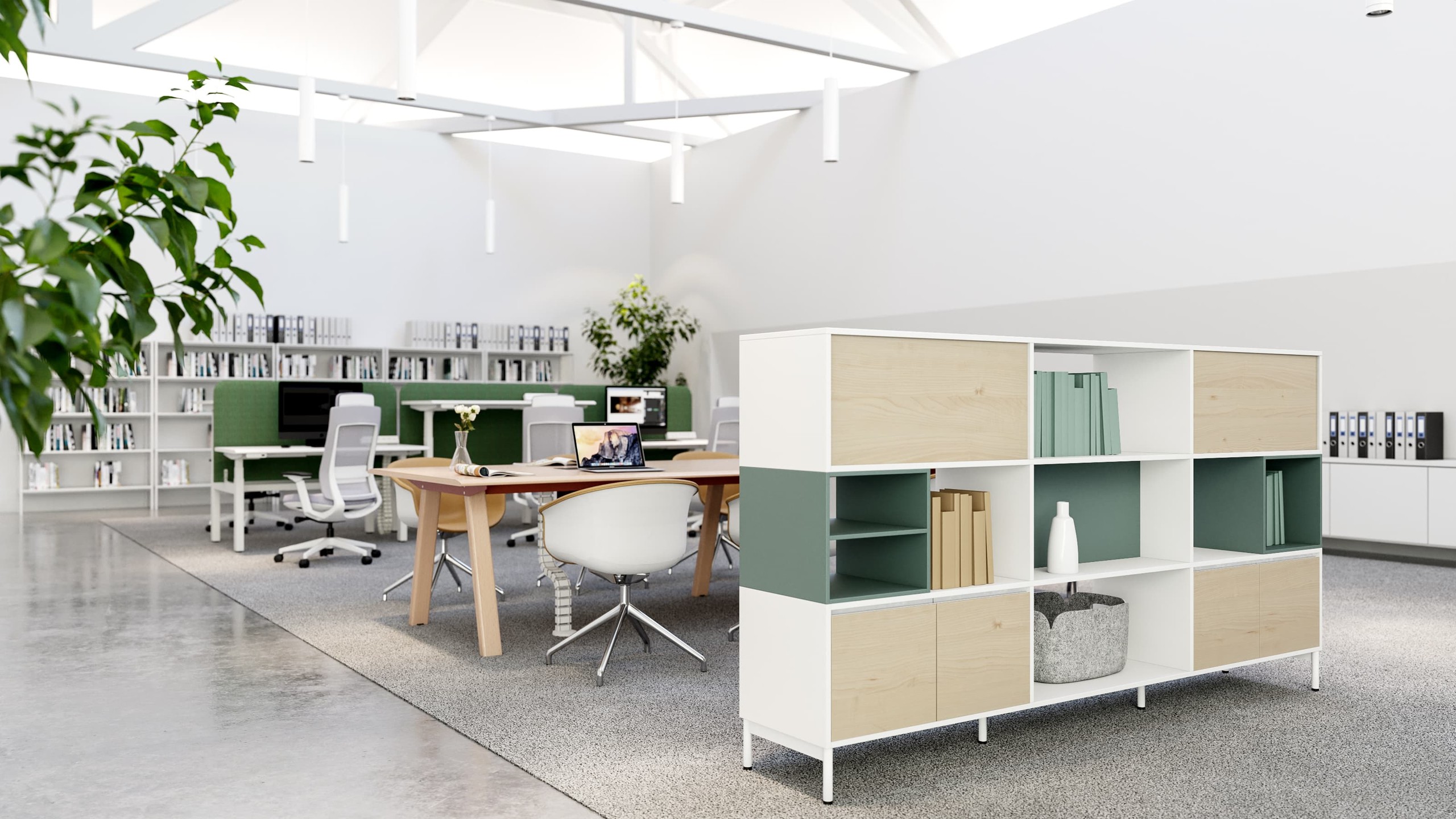

Grid Cabinet

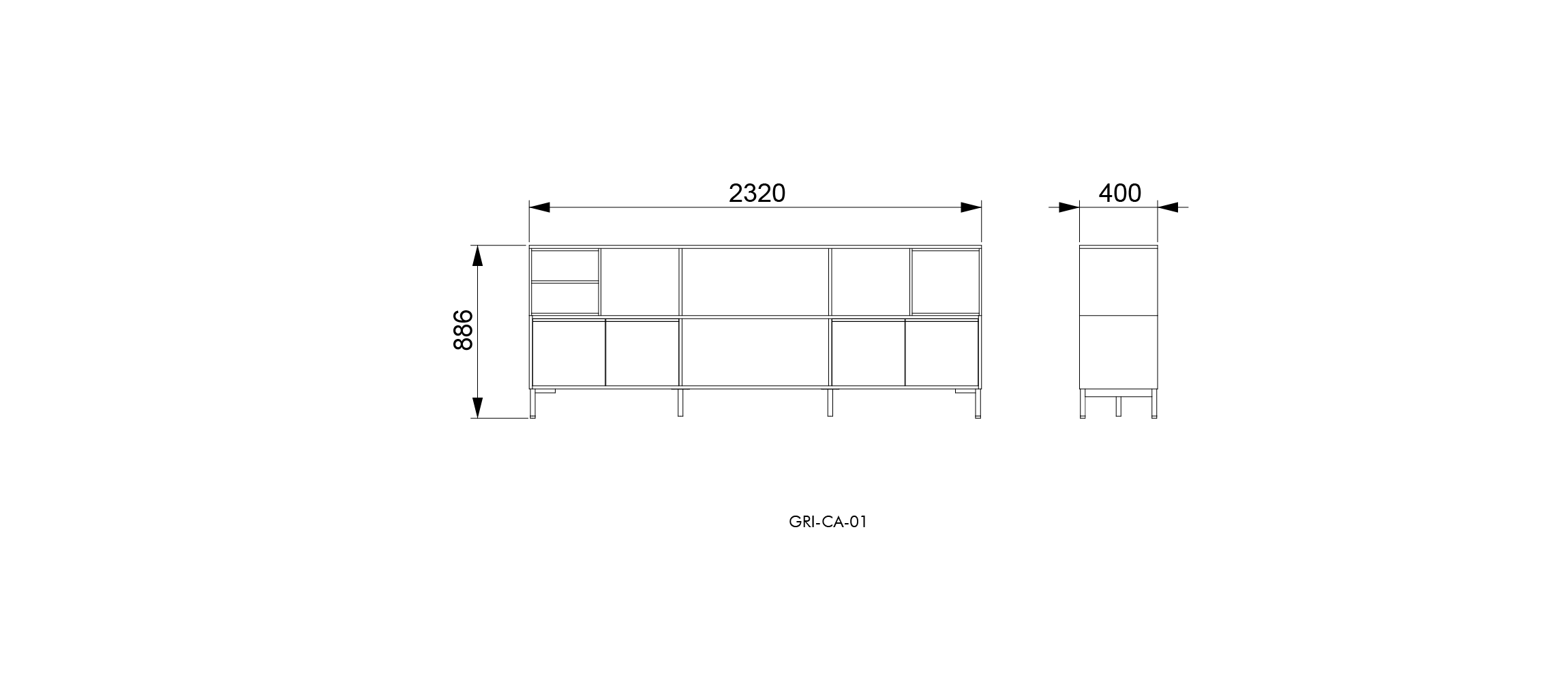

- 1-TYPE
GRI-CA-01
- 1-MATERIAL
Cabinet: MFC (16mm & 1 mm) Pull: Aluminum Base: Φ26mm steel tube (with black plastic protector) PROCESS: Pull: Matte finish Base: Powder coating
- 1-SIZE
W2320 D400 H886
- 1-PROCCESS
Base is electrostatic powder coating
- 1-PACKAGE SIZE
PACKAGE 1：W2495 D495 H85；PACKAGE 2：W495 D475 H145；PACKAGE 3：W860 D440 H120；PACKAGE 4：W435 D215 H190
- 1-PACKAGE VOLUME
0.2 m³
- 1-NET WEIGHT
76 kg
- 1-GROSS WEIGHT
81.3 kg
- 1-NUMBER OF PACKAGES
1 PCS/4 CTN
- 1-PACKING METHOD
Disassembly Double wall corrugated board outer packing+Paper corner protect+EPE wrap(for panels).
- 2-NAME
Grid Cabinet

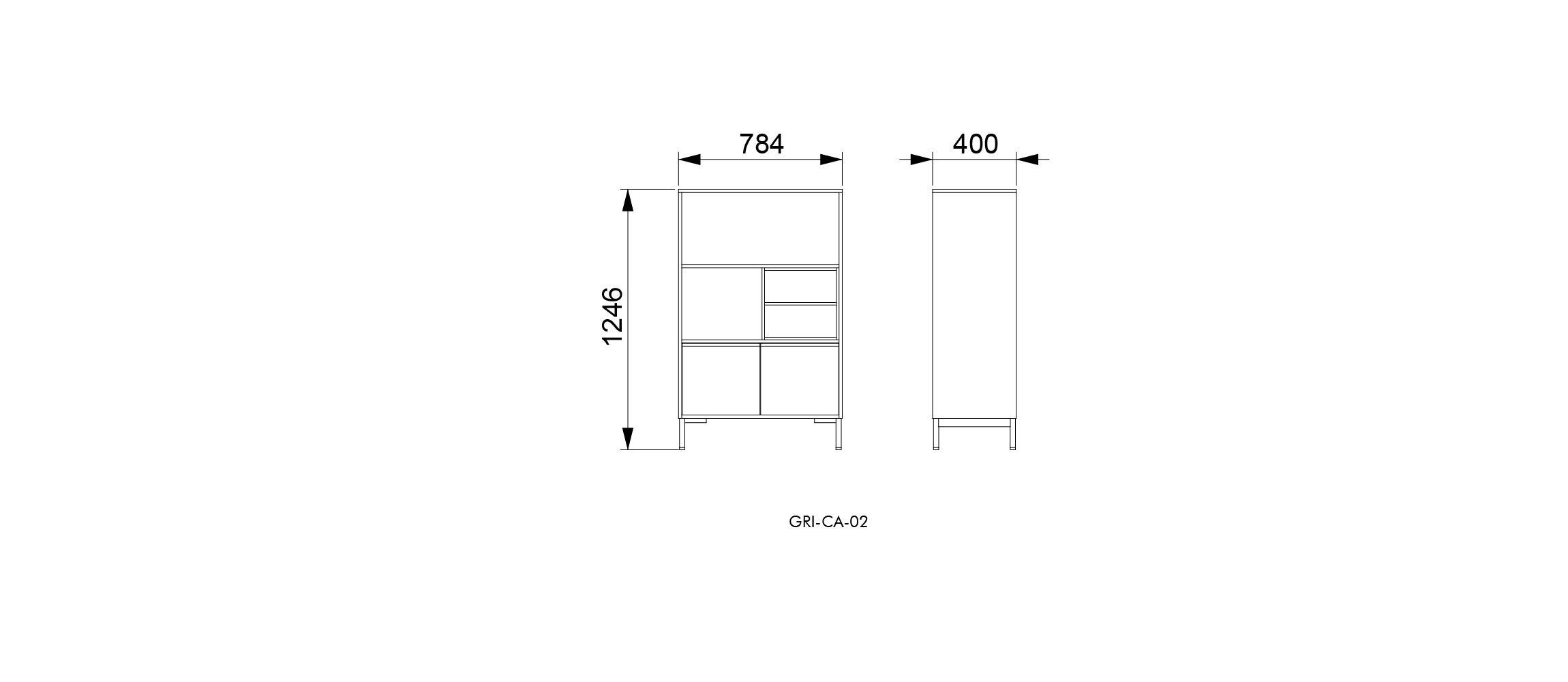

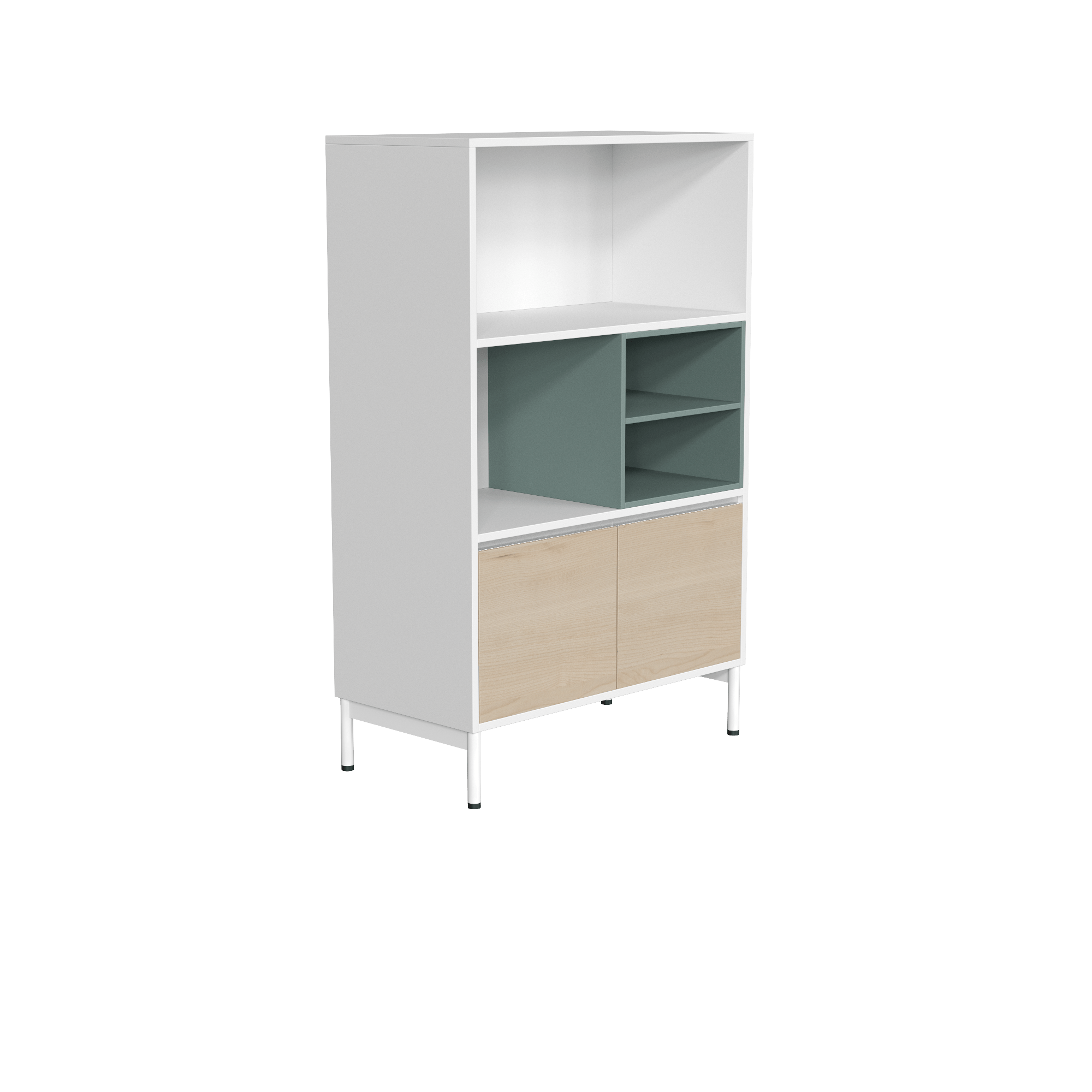

- 2-TYPE
GRI-CA-02
- 2-MATERIAL
Cabinet: MFC (16mm & 1 mm) Pull: Aluminum Base: Φ26mm steel tube (with black plastic protector) PROCESS: Pull: Matte finish Base: Powder coating
- 2-SIZE
W784 D400 H1246
- 2-PROCCESS
Base is electrostatic powder coating
- 2-PACKAGE SIZE
PACKAGE 1：W1180 D495 H130；PACKAGE 2：W860 D440 H120；PACKAGE 3：W435 D215 H190
- 2-PACKAGE VOLUME
0.14 m³
- 2-NET WEIGHT
46 kg
- 2-GROSS WEIGHT
52.6 kg
- 2-NUMBER OF PACKAGES
1 PCS/3 CTN
- 2-PACKING METHOD
Disassembly Double wall corrugated board outer packing+Paper corner protect+EPE wrap(for panels).

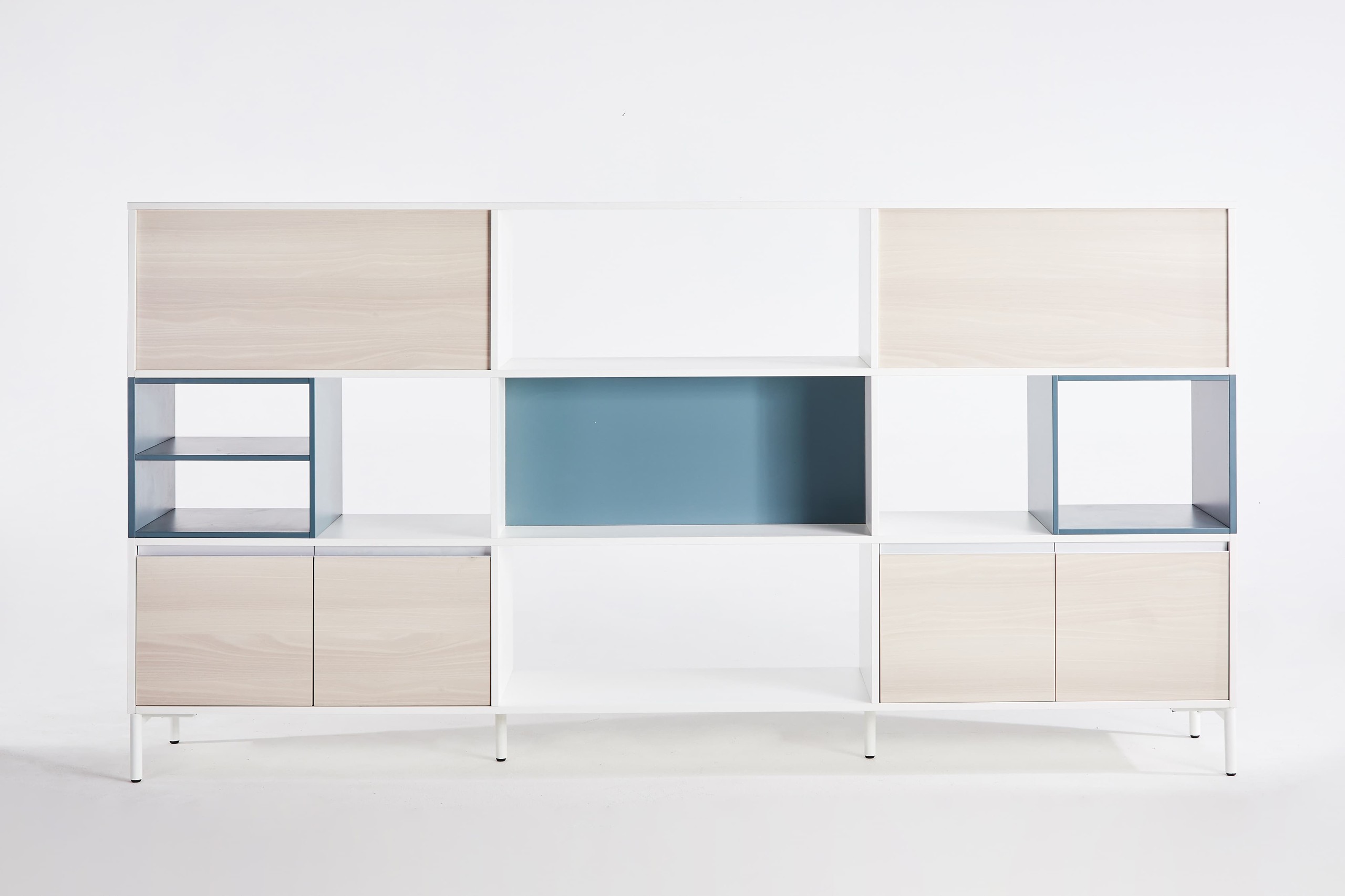

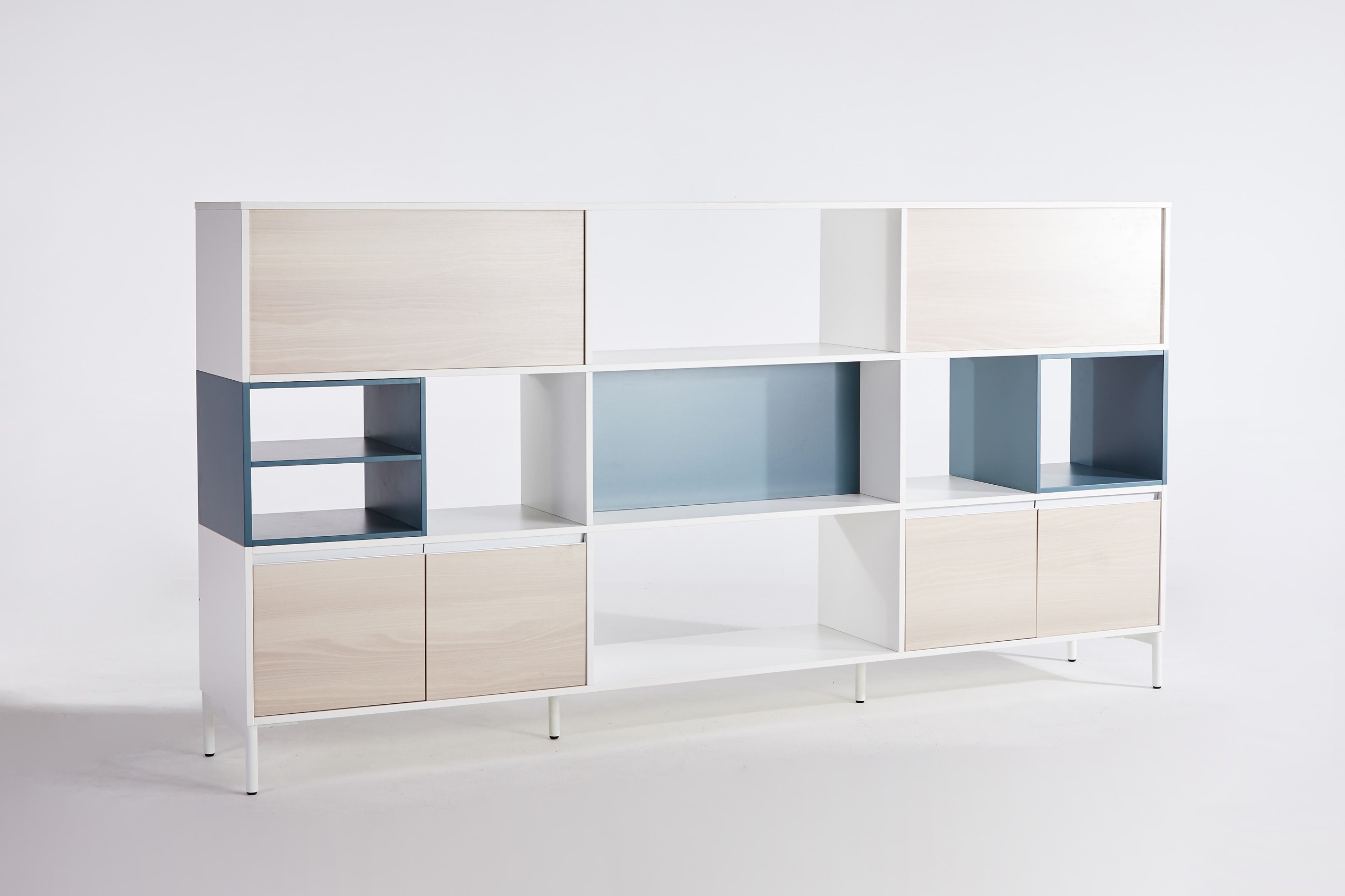

- 3-NAME
Grid Cabinet

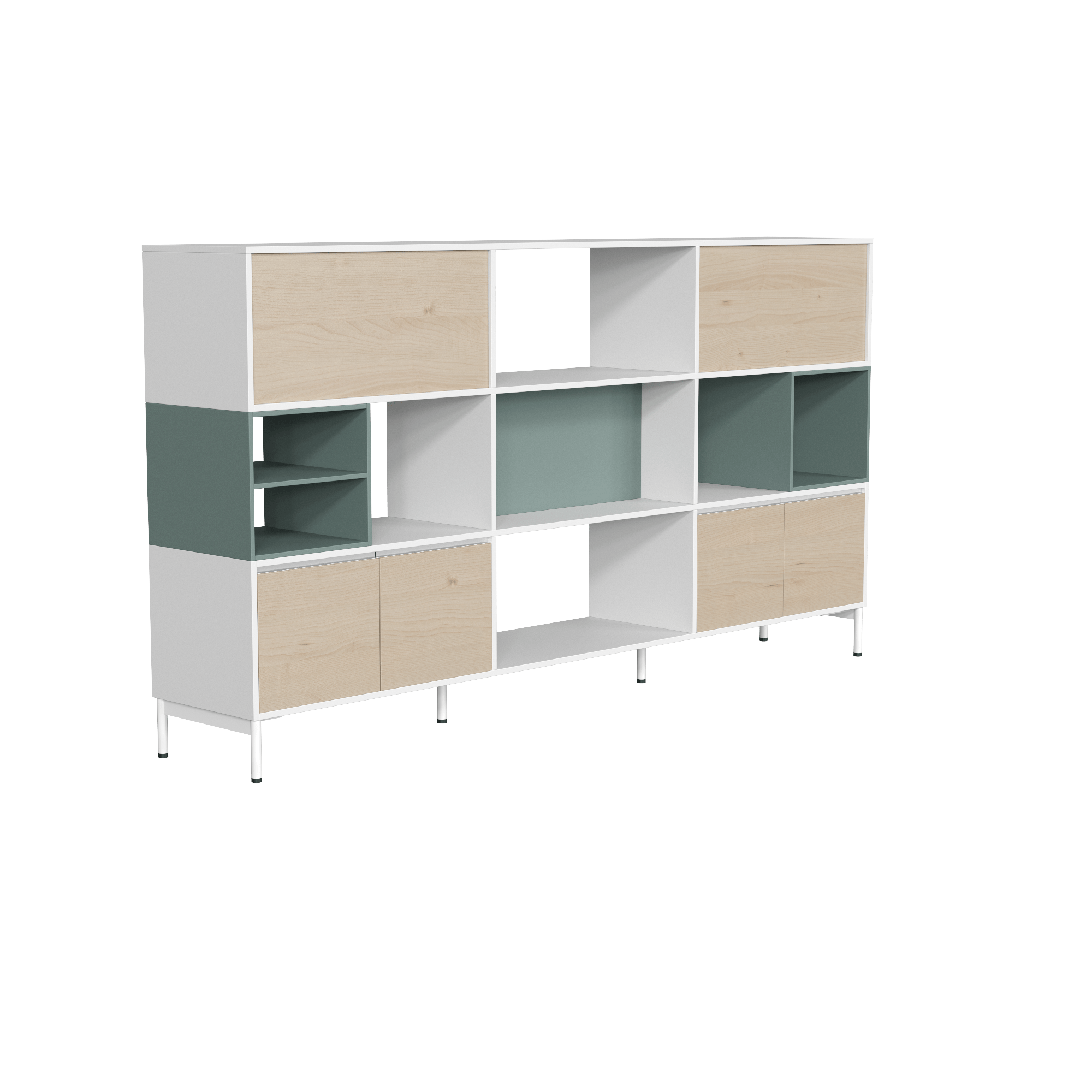

- 3-TYPE

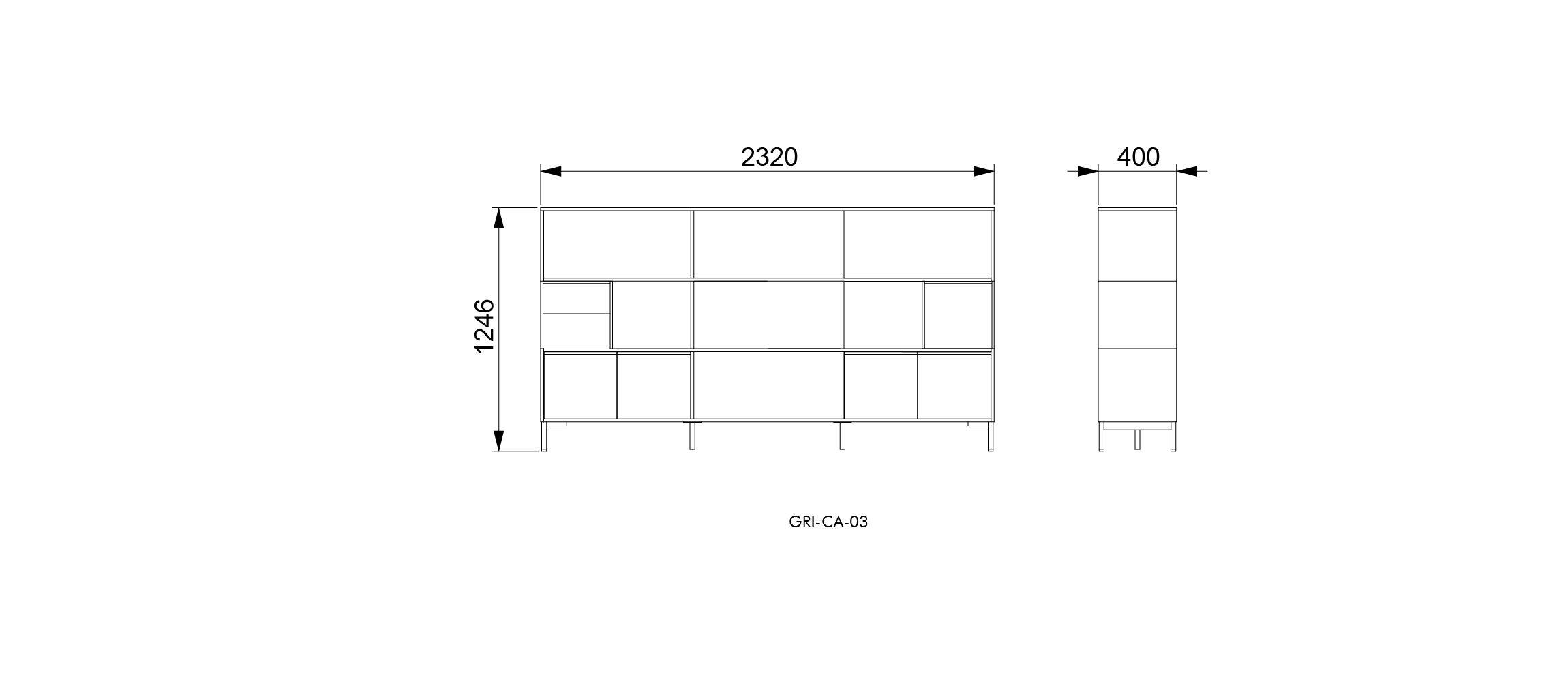

GRI-CA-03
- 3-MATERIAL
Cabinet: MFC (16mm & 1 mm) Pull: Aluminum Base: Φ26mm steel tube (with black plastic protector) PROCESS: Pull: Matte finish Base: Powder coating
- 3-SIZE
W2320 D400 H1246
- 3-PROCCESS
Base is electrostatic powder coating
- 3-PACKAGE SIZE
PACKAGE 1：W2495 D495 H85； PACKAGE 2：W860 D440 H120； PACKAGE 3：W900 D400 H85； PACKAGE 4：W495 D475 H145； PACKAGE 5：W435 D215 H190
- 3-PACKAGE VOLUME
0.24 m³
- 3-NET WEIGHT
100 kg
- 3-GROSS WEIGHT
112.8 kg
- 3-NUMBER OF PACKAGES
1 PCS/5 CTN
- 3-PACKING METHOD
Disassembly Double wall corrugated board outer packing+Paper corner protect+EPE wrap(for panels).
Grid Cabinet / General Colors
铁灰色
W742浅木纹
White
灰豆绿
Model
3D Model
- TitleFile
- GRI-CA-02.objobj 6.63M
- GRI-CA-03.objobj 19.82M
- GRI-CA-01.objobj 11.21M
- GRI-CA-03.3ds3ds 4.09M
- GRI-CA-01.dwgdwg 258.4K
- GRI-CA-03.dwgdwg 332.93K
- GRI-CA-02.3ds3ds 1.41M
- GRI-CA-01.3ds3ds 2.38M
- GRI-CA-02.dwgdwg 188.15K
SU Model
- TitleFile
- GRI-CA-01.skpskp 944.9K
- GRI-CA-03.skpskp 1.52M
- GRI-CA-02.skpskp 576.87K
CAD Model
- TitleFile
- GRI-CA-02.dwgdwg 65.71K
- GRI-CA-03.dwgdwg 108.2K
- GRI-CA-01.dwgdwg 74.68K
