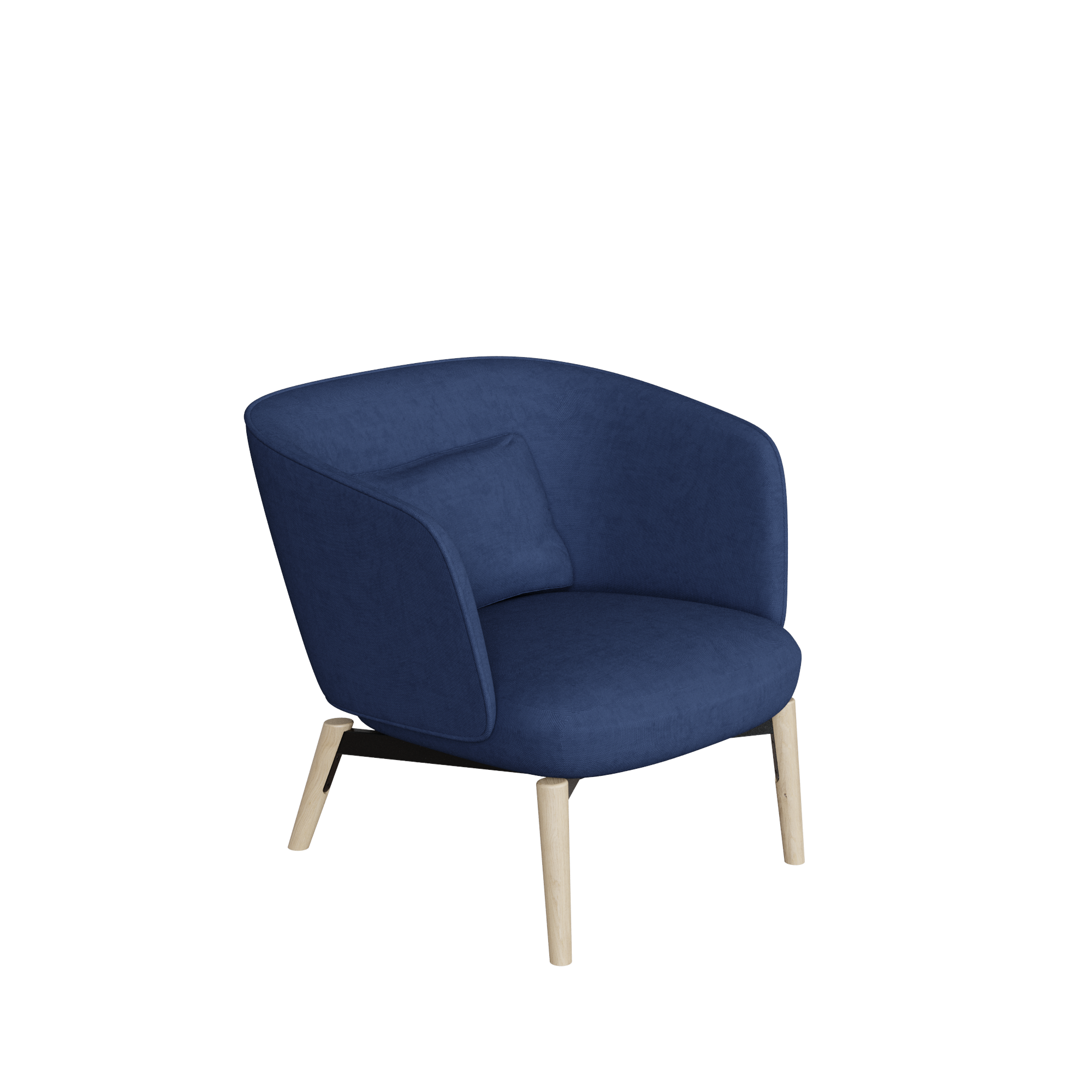

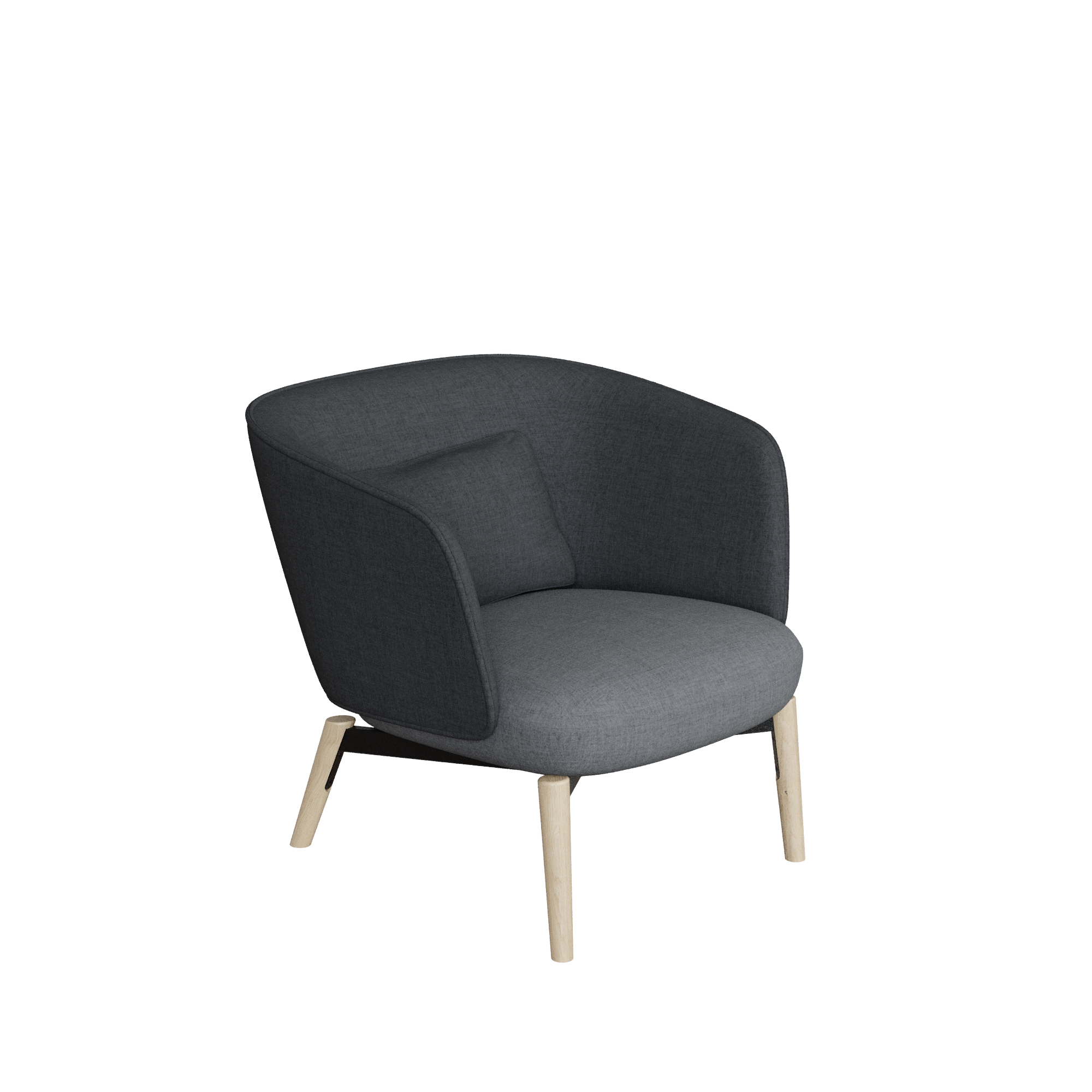

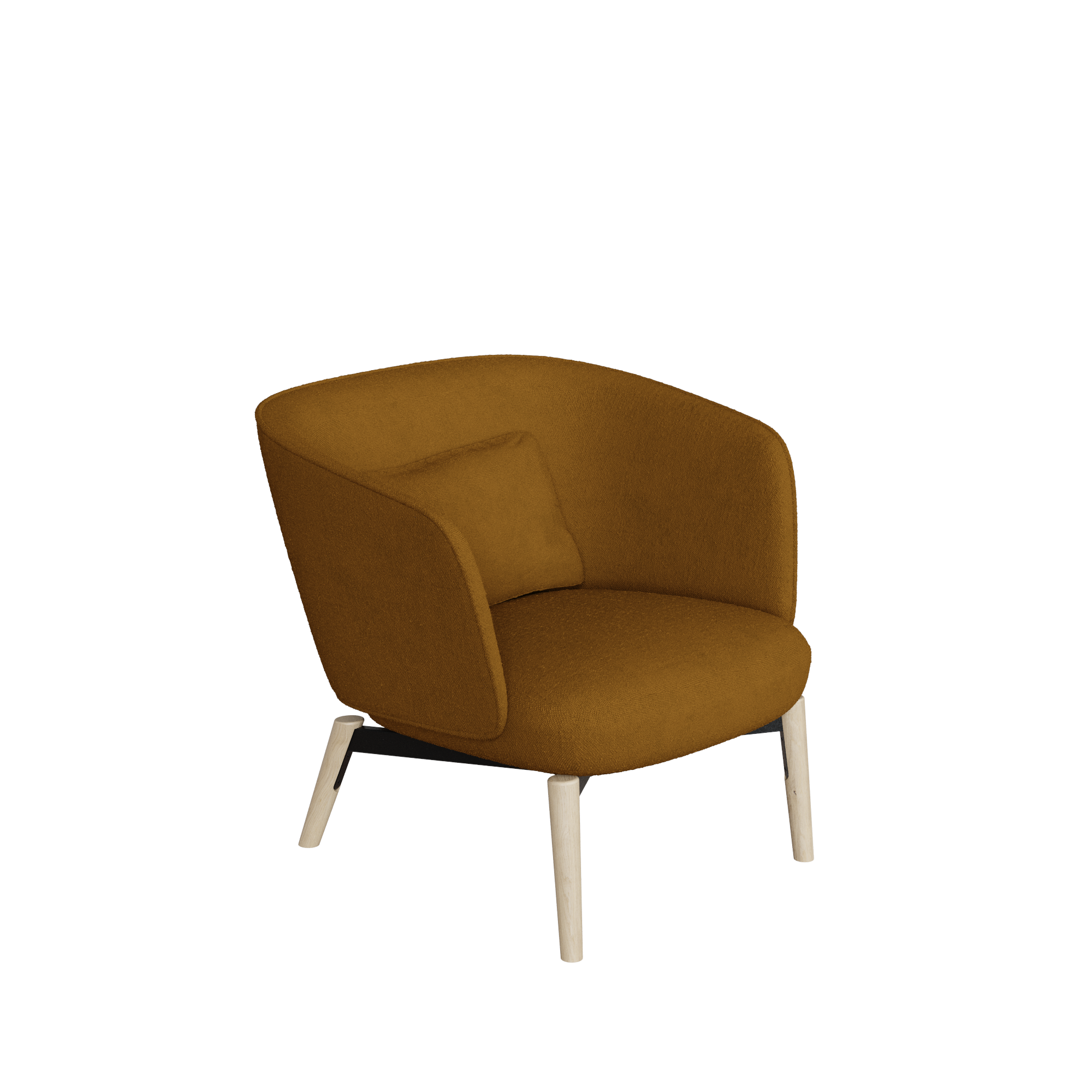

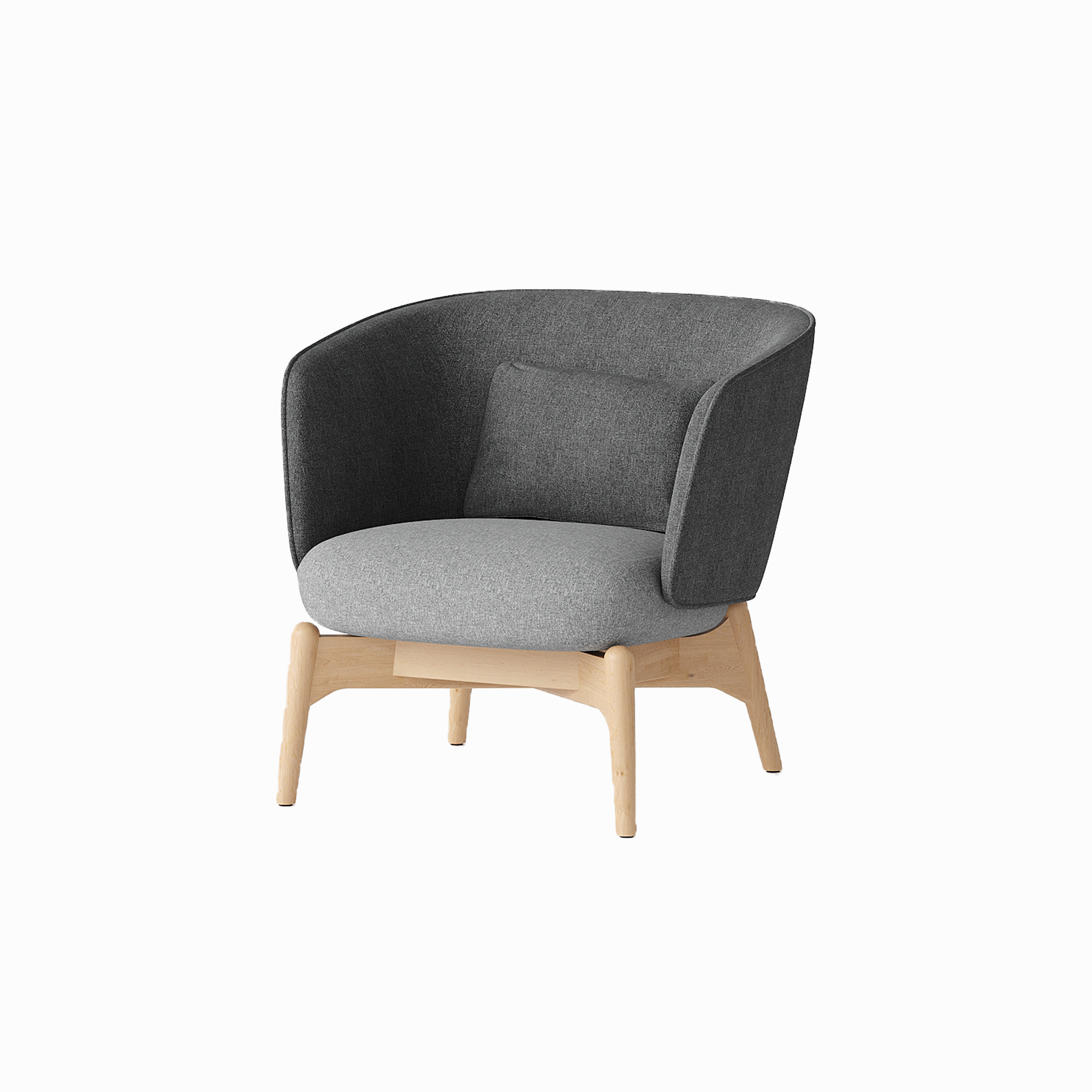

Beos Lounge Chair / Low Back Wooden Base

In 2020, grado and German design studio designschneider jointly developed a product suitable for multiple scenarios, Beos Lounge.

The main body of the Beos Lounge Chair is inspired by the golden segment line of the shell. Besides the shape determined by curvature in the three-dimensional space, the backrest and armrest are designed as an integrity following an attachable headrest, which better ensures the unity of the chair. grado prepared the soft two-color design for the first time, providing a multi-layered aesthetic for the space.

Information

Product parameters
NAME

Beos Lounge Chair / Low Back Wooden Base

TYPE

BEO-CH-06

MATERIAL

shell: integral soft Polyurethane foam (steel frame inlaid) beechwood color, equipped with a transparent anti-skid mat; steel frame connection / Base is PU painting Includes a pillow

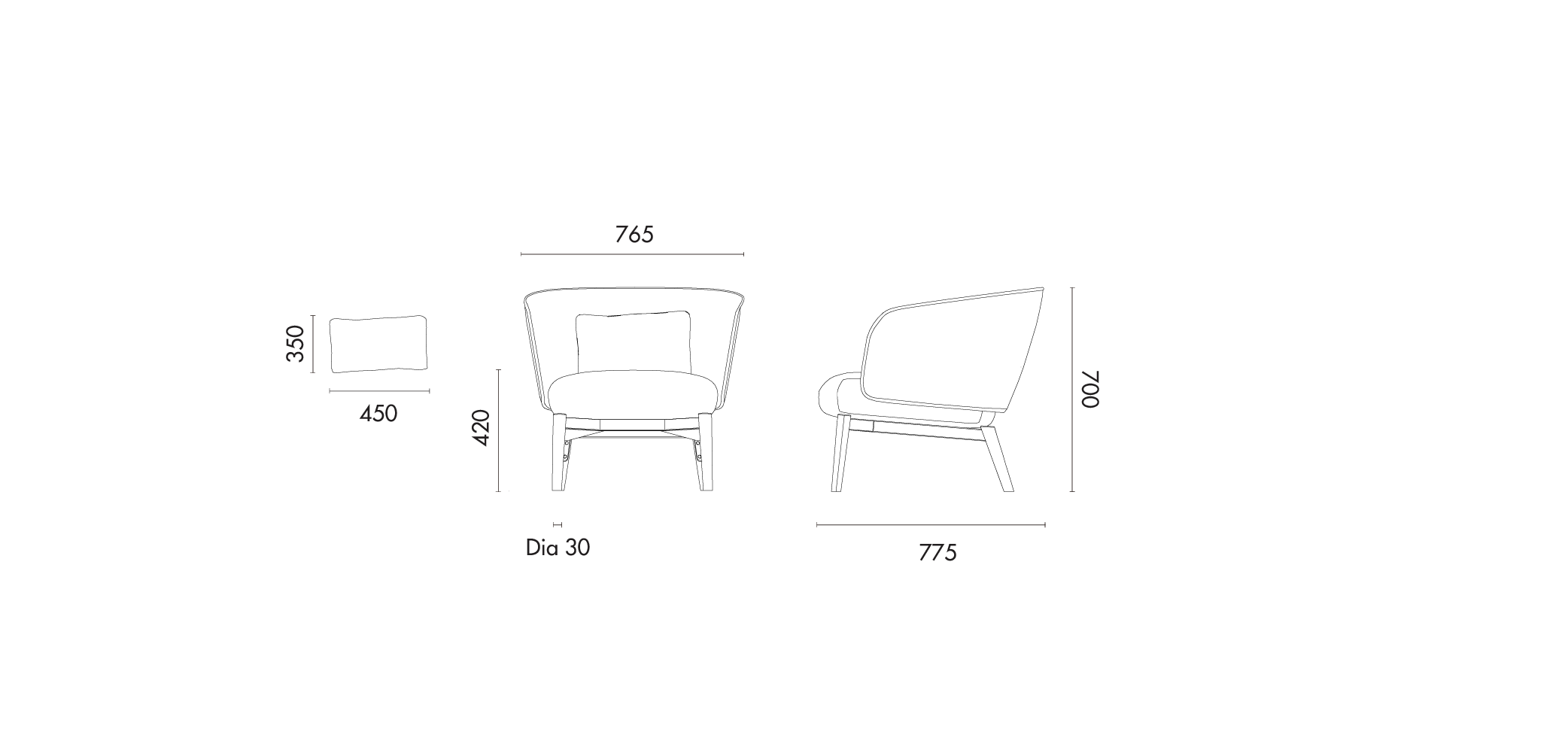

SIZE

W765 D775 H700 SH420

PROCCESS

Shell is upholstered / Wooden base is PU Lacuquered and steel connection is powder epoxy polyester powder coated.

PACKAGE SIZE

W810 D790 H1140

PACKAGE VOLUME

0.53 m³

NET WEIGHT

24.3kg

GROSS WEIGHT

30.2kg

NUMBER OF PACKAGES

1PCS/ CTN

PACKING METHOD

Knock down / Double wall corrugated board outer packing / Shell wrap up PE bag / frame wrap up EPE EVA.

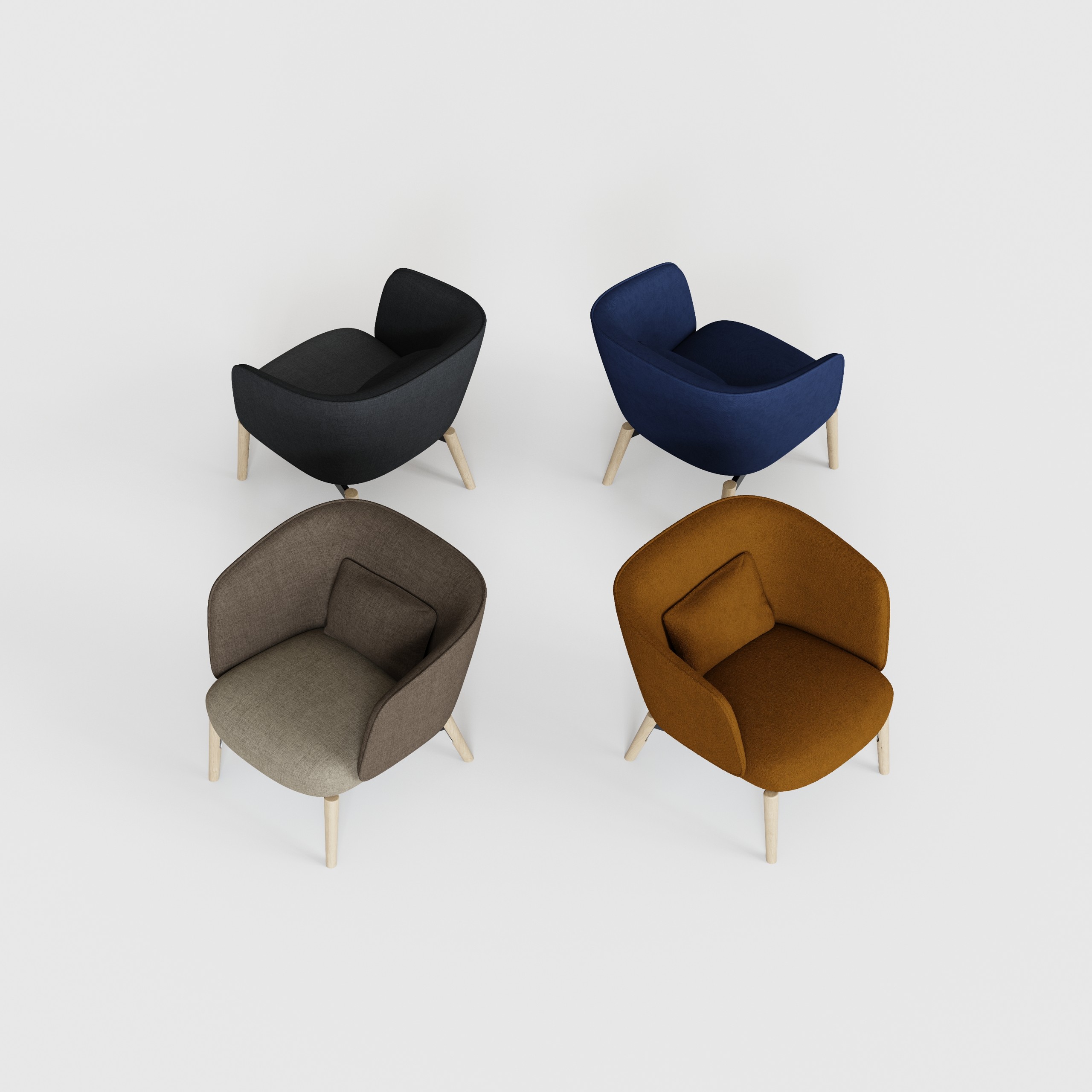

Beos Lounge Chair/ Low Back Wooden Base - Chair Surface Color

  • GM-60004
  • GM-60167
  • GM-62002
  • GM-61003
  • Remix30422


Model

3D Model

TitleFile

BEO-CH-06.3dm3dm 1.01M

Download

BEO-CH-06.objobj 16.41M

Download

BEO-CH-06.dwgdwg 1.17M

Download

BEO-CH-06.3ds3ds 813.82K

Download

SU Model

TitleFile

BEO-CH-06.skpskp 6.49M

Download

CAD Model

TitleFile

BEO-CH-06.dwgdwg 253.68K

Download

Revit Model

TitleFile

BEO-CH-06.rfarfa 1.32M

Download

Document

TitleFile

2021年9月2日椅子(beos).pdfpdf 1.2M

Download
